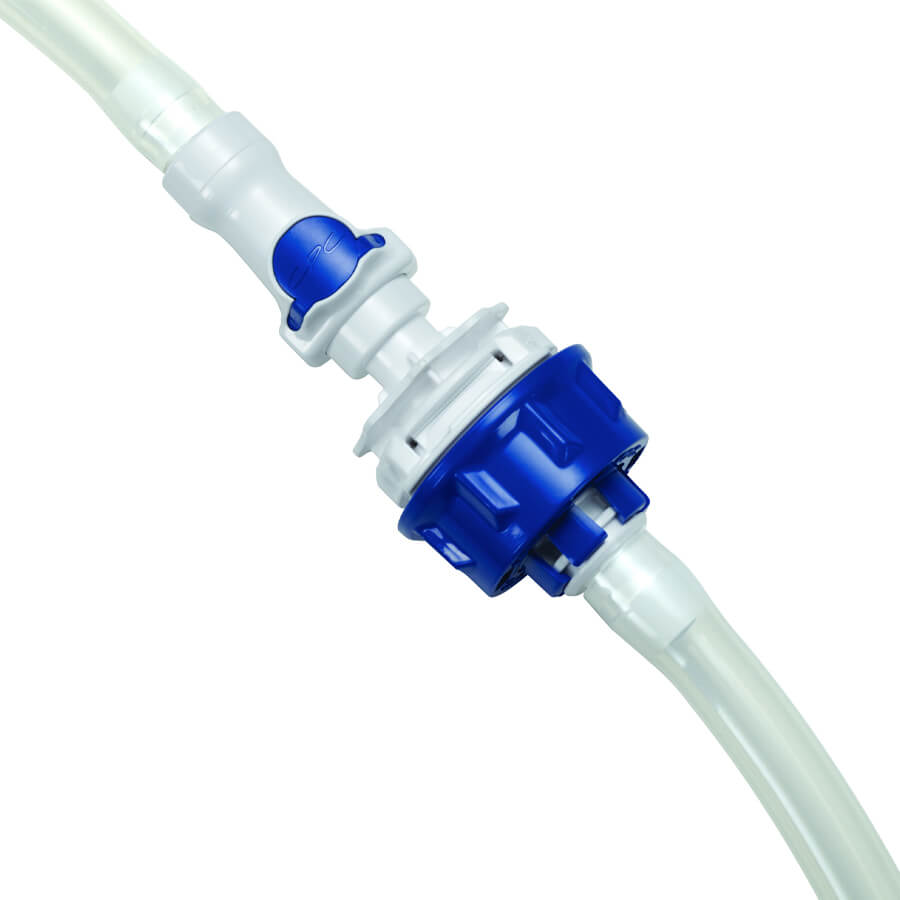

AseptiQuik DC

AseptiQuik® DC Connectors are the first all-in-one single-use connection technology to offer both a sterile connect and sterile disconnect, even in non-sterile environments.

AseptiQuik DC’s intuitive “CLICK-PULL-TWIST” design enables users to transfer media easily with less risk of operator error. After transfer is complete, the connector features a simple one-step disconnection that maintains media sterility by preventing external organisms from entering into the media flow path. The connector’s robust design and automatic shutoff valves provide reliable performance without the need for sanitary clamps, fixtures or tube welders.

Technical sheet AseptiQuik® DC

Description

Typical applications

  • Aseptic filling
  • Bio-process bags
  • Media transfer

Features and benefits

  • Terminations sizes: 1/4″, 3/8″ and 1/2″ ID hose barb (6.4mm, 9.5mm and 12.7mm)
  • Pressure: up to 60 psi, 4.1 bar
  • Temperature: 39°F to 104°F (4°C to 40°C)
  • FLIP-CLICK-PULL System: intuitive three-step connection process reduces risk of operator error
  • Simple one-step disconnection: maintains media sterility in each half by preventing external organisms from entering the flow path
  • Integrated pull tab covers: provide pre-assembly protection and ensure simultaneous removal of both membranes
  • Automatic shutoff valve: stop flow and eliminate need for pinch clamps
  • Robust construction: repeatable and reliable performance with no additional hardware required
  • CPC Click: audible confirmation of assembly
  • Autoclave and gamma
  • Meets USP Class VI, ADCF criteria
  • Compatibilité aux exigences ADCF
  • Made in the USA
