Connecteur sans genre à Usage-Unique permettant des connexions stériles

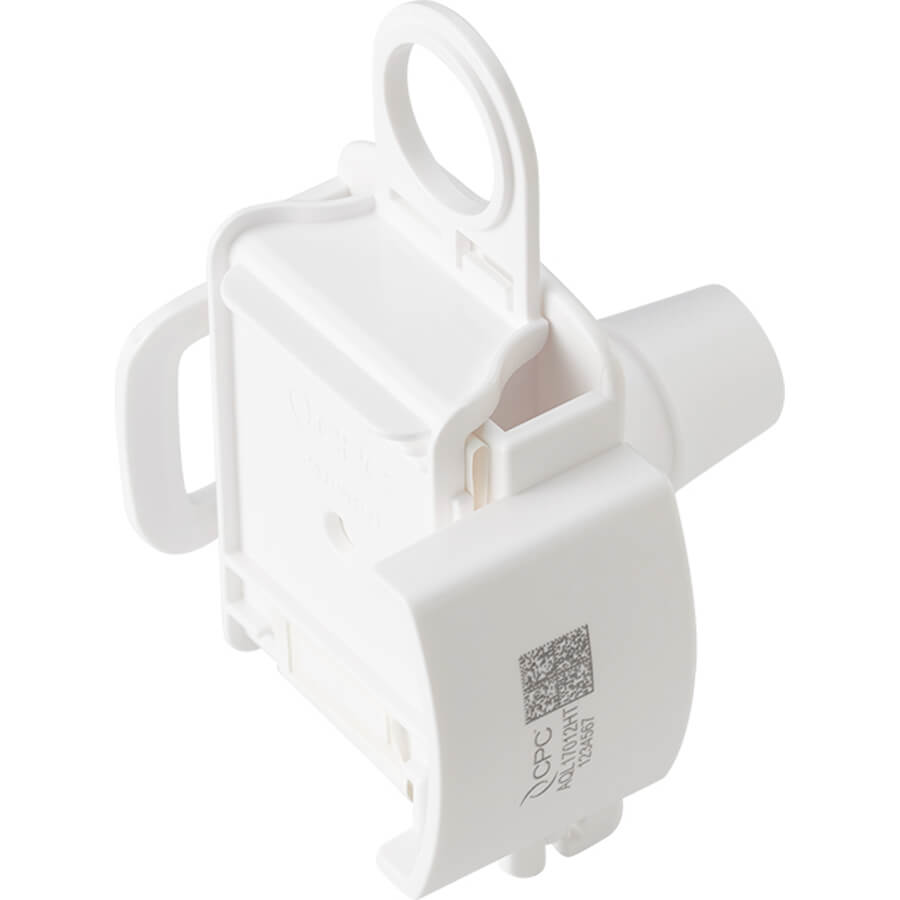

AseptiQuik L

Genderless AseptiQuik® L Connectors enable quick and easy sterile connections, in large-volume, high-flow production environments. The large format, 3/4″ and 1″ genderless design simplifies system integration and minimizes the risk of operator error.

The connectors’ robust construction provides enhanced user confidence and reliable performance without the need for clamps, fixtures or tube welders.

Technical sheet AseptiQuik® L

Add to quote
Category:

Description

Typical applications

  • Aseptic filling
  • Bio-process bags

Features and benefits

  • Termination sizes: 3/4″, 1″ ID hose barb ( 19.0 mm, 25.4 mm)
  • Pressure: up to 60 psi, 4.1 bar
  • Temperature: 34°F to 104°F (1°C to 40°C)
  • Genderless design : eases single-use systems specifications with one part number for both halves
  • FLIP-CLICK-PULL System: intuitive three-step connection process reduces risk of operator error
  • Integrated pull tab covers: provide pre-assembly protection and ensure simultaneous removal of both membranes
  • Robust construction: repeatable and reliable performance with no additional hardware required
  • CPC Click: audible confirmation of assembly
  • Autoclave and gamma
  • Meets USP Class VI, ADCF criteria
  • Made in the USA
