Single-Use connector combining the AseptiQuik® and SIP Steam-Thru® connectors

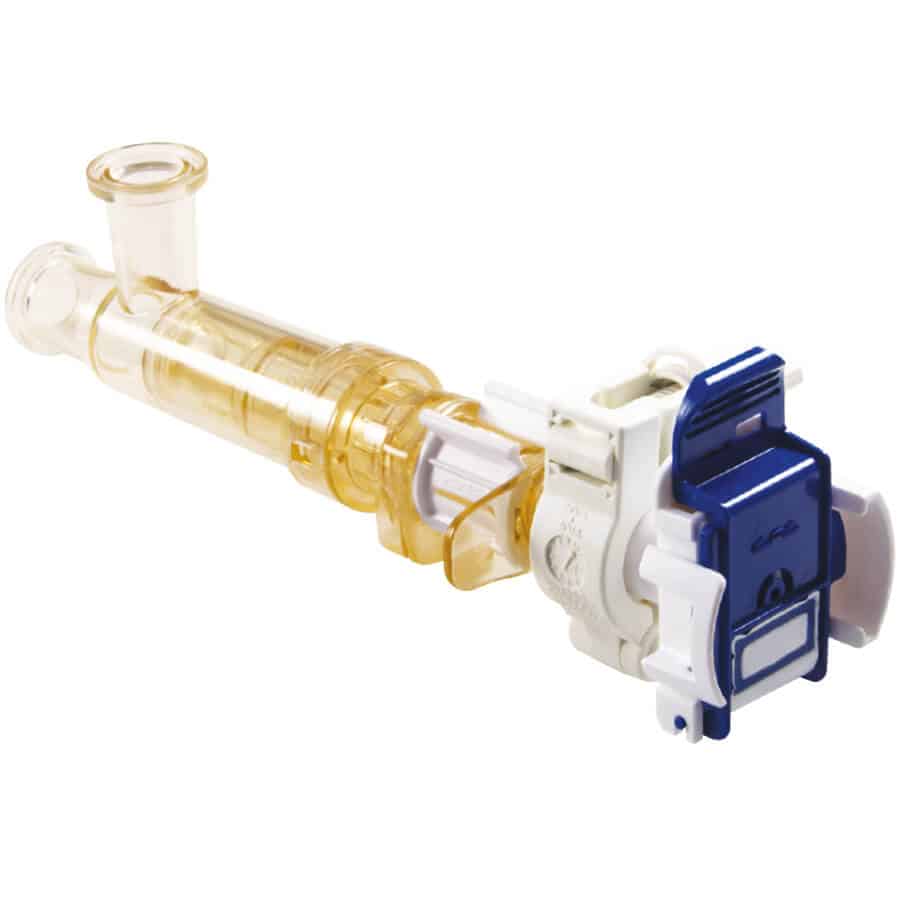

AseptiQuik STC II

AseptiQuik® STC II Connectors integrate the AseptiQuik sterile connector and the Steam-Thru® II SIP connector, giving manufacturers with even greater flexibility for hybrid stainless steel and single-use processing. The AseptiQuik STC II connector combines either an AseptiQuik G or AseptiQuik C sterile connector with a Steam-Thru II connection that can be mounted directly to a stainless steel vessel via a sanitary termination.

AseptiQuik STC II connectors utilizing an AseptiQuik G sterile connector offer a genderless design, simplifying system integration at the aseptic connector end. AseptiQuik STC II connectors utilizing an AseptiQuik C sterile connector allow system designers to incorporate a keyed female-to-male connection at the aseptic connector end. The union of the two connectors into a single unit through a sanitary clamp allows an AseptiQuik sterile connection to be steamed on to stainless equipment via SIP. After the SIP cycle, a wide range of single-use systems can be connected. The SIP process can be done in advance allowing a quick and easy sterile connection to the AseptiQuik half without having to wait 30-60 minutes for SIP prior to harvest.

Technical sheet AseptiQuik® STC II

Add to quote
Category:

Description

Typical applications

  • Storage
  • Media transfer

Features and benefits

  • Pressure:
    • Steam position: Up to 35 psi, 2.4 bar
    • Flow position: Up to 20 psi, 1.4 bar
  • Temperature:
    • Steam position: up to 275°F (135°C) for 60 minutes
    • Flow position: 39°F to 104°F (4°C to 40°C)
  • FLIP-CLICK-PULL System: intuitive three-step connection process reduces risk of operator error
  • Innovative three-port steam design: allows a true steam-through SIP process which eliminates “dead legs”
  • Patented steam valve design: allows sterile connection and disconnection to stainless equipment and permits a high media flow rate
  • Sanitary interface between the two connectors: more secure connection than tubing with cable ties
  • Robust construction: repeatable and reliable performance with no additional hardware required
  • CPC Click: audible confirmation of assembly
  • Autoclave and gamma
  • Meets USP Class VI, ADCF criteria
  • Made in the USA
